Product Show

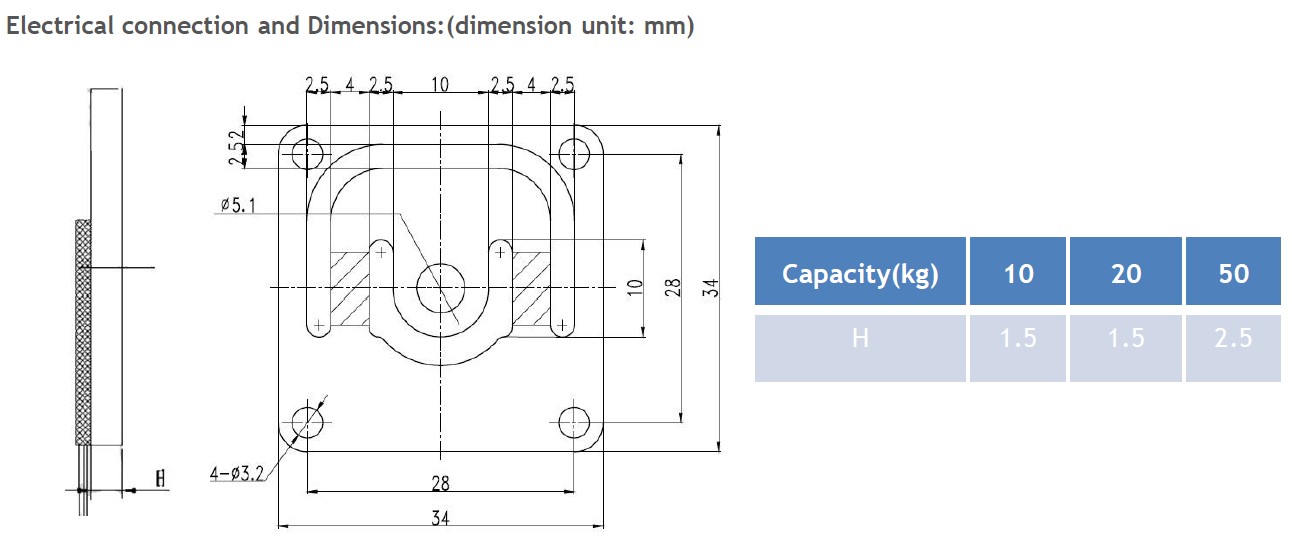

TAL107F Full bridge load cell

Product Numbers:TAL107F

Product description:Features: ◆Capacity :10kg,30kg,50kg ◆Material: alloy steel ◆Type: micro load cell ◆Defend grade: IP65 ◆Application : body scales, hand scales, kitchen scales, postal scales, bathroom scale, baby body scales and other micro electronic weighing system TAL107F is full brdige load cell with 4 wires TAL107H is half bridge load cell with 3 wires

INTRODUCTION:





Model No. TAL107H, half bridge load cell with 3 wires

TAL107F, full bridge load cell with 4 wires

Capacity kg 10,20,50
Accuracy %FS ± 0.05
Rated output  mV/V 1.0 ± 0.2 or 2.0± 0.2
Recommed excitation Vdc 5 ~ 10
Electrical connection wire

TAL107H : Ø 0.8×400 mm , 3 color wire, Red, black, white

TAL107F, Ø 0.8×400 mm , 4 color wire, Red, black, green, white
