GB Half bridge Strain Gages

Product Numbers:GB Half bridge Strain Gages

Product description:Strain Gages For Precious Transducers

Inquiry

INTRODUCTION:

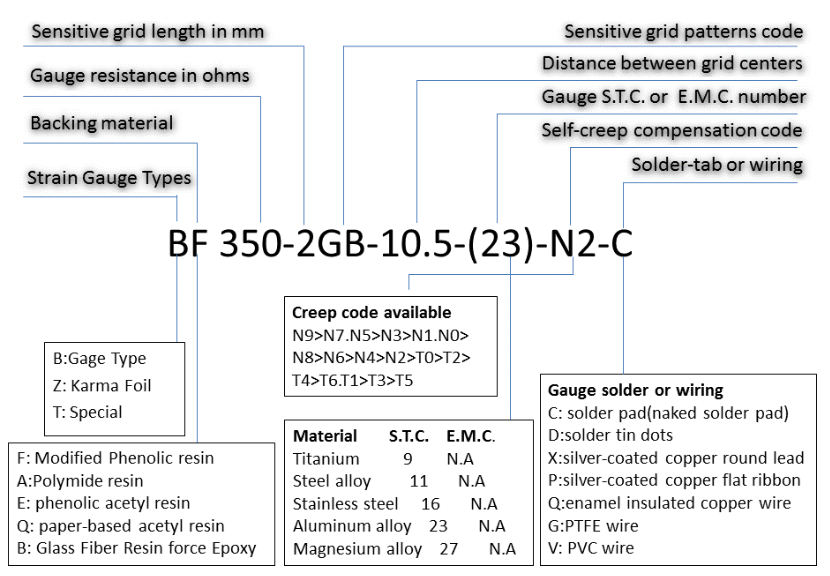

Ordering code:





BF series

BA series

ZF series

modified phenolic resin backing, constantan alloy, encapsulated gauges with temperature compensation and creep compensation; high accuracy, good stability , for manufacturing precision transducers (0.02%FS)

Polyamide resin n constantan alloy, encapsulated gauges with temperature compensation, high elongation, wider operating temperature range, suitable for stress analysis under 150 ℃ and build in 0 . 0 5 % F S accuracy transducers.

modified phenolic resin backing karma alloy encapsulated gauges with temperature compensation and creep compensation(or modulus compensation) high accuracy good

stability, high resistance, small power loss for manufacturing 0.02%FS accuracy transducers.

specification

BF series

BA series

ZF series

nominal resistance(Ω)

3,506,501,000

3,506,501,000

3,506,501,000

tolerance of resistance

<±0.1%

<±0.1%

<±0.1%

gauge factor

2.00~2.20

1.86~2.20

1.86~2.40

gauge factor resistance

<±1%

<±1%

<±1%

strain limit

2.00%

2.00%

2.00%

fatigue life

>107

>107

>108

effective modulus compensation

not available

not available

aluminum(23)

metal foil

constantan alloy

karma alloy

constantan alloy

creep compensation

available

available

available

working temperature range

-30~+80℃

-30~+150℃

-30~+80℃

temperature compensation

titanium(9), mild steel(11), stainless steel(16), aluminium(23), magnesium(27), plexiglass(65)

curing temperature

135℃(curing process)  165℃(post curing process)



MODEL

GRID DIM

BACKING DIM

CREEP

Distance to Center mm

L (mm)

W (mm)

L (mm)

W (mm)

BF100-1GB

1.0

2.7

7.6

3.6

　

5.0；6.0； 7.0； -----

BF350-1GB

1.0

2.7

8.2

3.6

　

3.8；5.8； 7.0 ；-----

BF350-2GB

2.1

3.8

10.4

4.8

　

6.0；7.0；10.5； -----

ZF350-2GB

2

2.6

10.8

3.5

　

6.0；7.0；10.5； -----

ZF500-2GB

2

3.2

9.6

3.8

　

6.0；7.0； -----

ZF700-2GB

2

3.2

9

3.8

　

5.8；6.0； 7.0 ；-----

ZF1000-1.5GB

1.8

3.7

9.6

4.4

　

6.0；7.0； 8.0； -----

ZF1000-2GB

2

3.6

9.9

4.4

　

6.0；7.0；10.5；-----

ZF1000-3GB

3.2

3.8

15

4.8

　

7.0；10.5；  ------
